ALITA
INDUSTRIES

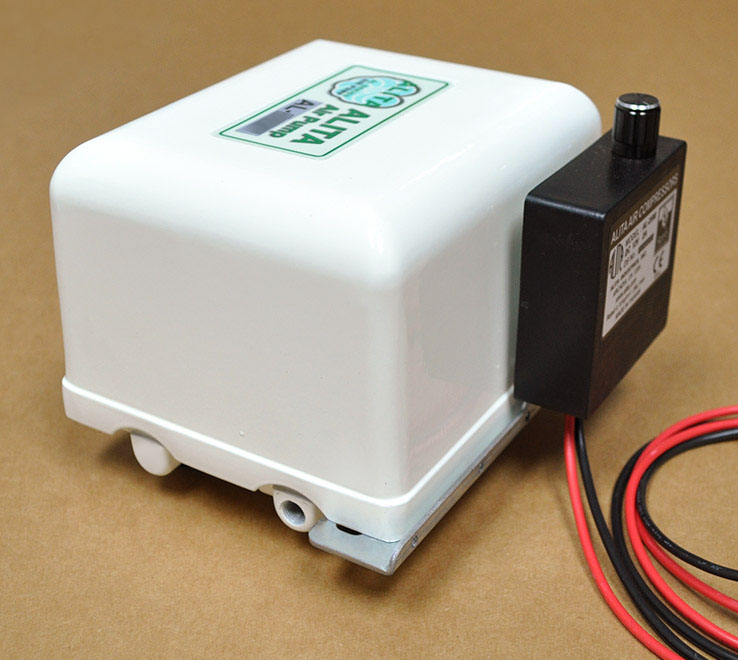

AL-20A.DC Series


Performance Curves

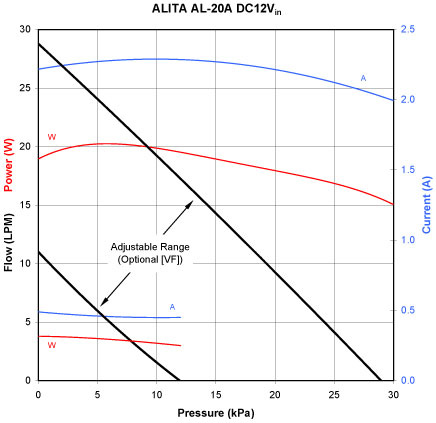

× 12V

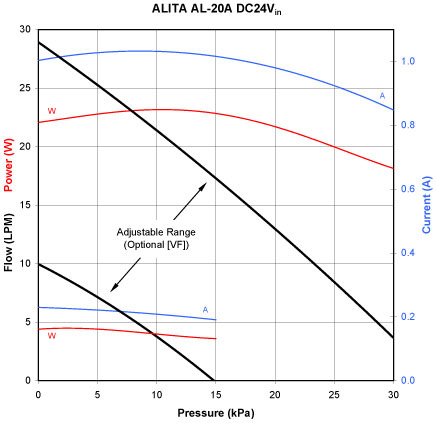

× 24V
Specification
Model AL-20A.DC12 AL-20A.DC24
Input Voltage 12VDC 24VDC
Rated Performance (±5%) 20 LPM @ 10 kPa
0.71 CFM @ 1.4 psig
22 LPM at 10 kPa
0.78 CFM at 1.4 psig
Rated Power 20 W 23 W
Rated Current 2.3 A 1.04 A
Maximum Power 20 W 23 W
Maximum Current 2.3 A 1.04 A
Discharge O.D. 1/8" FPT tapered *
Model AL-20A.DC12
Input Voltage 12VDC
Rated Performance (±5%) 20 LPM @ 10 kPa
0.71 CFM @ 1.4 psig
Rated Power 20 W
Rated Current 2.3 A
Maximum Power 20 W
Maximum Current 2.3 A
Discharge O.D. 1/8" FPT tapered *

Model AL-20A.DC24
Input Voltage 24VDC
Rated Performance (±5%) 22 LPM at 10 kPa
0.78 CFM at 1.4 psig
Rated Power 23 W
Rated Current 1.04 A
Maximum Power 23 W
Maximum Current 1.04 A
Discharge O.D. 1/8" FPT tapered *
* Supplied discharge fittings: 3/8" barb with 5mm ID
Specifications and performance data are subject to change without notice



Model Description:
AL-  20    A   .  DC12  .  MF

Rated Performance
    10: 10 LPM @ 10 kPa
    15: 15 LPM @ 10 kPa
    20: 20 LPM @ 10 kPa

Model Type
    A: Pressure only
    SA: Vacuum + Pressure
    B: Pressure only, component type
    SB: Vacuum + Pressure, component type

Input Voltage
    DC12: 12Vdc
    DC24: 24Vdc
    DC36: 36Vdc
    DC48: 48Vdc

Flow Adjustment
    MF: Manual ON/OFF and flow control
    AF5: Connect to external power switch and flow control with 0~5Vdc
    (none): No flow control
