ALITA
INDUSTRIES

AL-40A.DC Series


Performance Curves

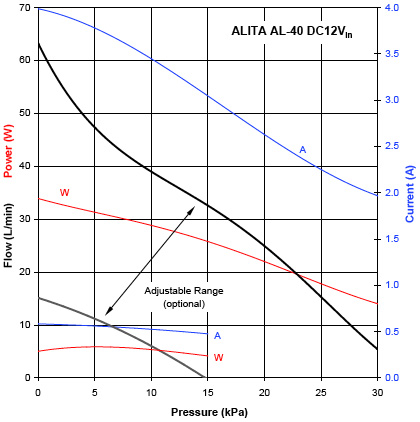

× 12V

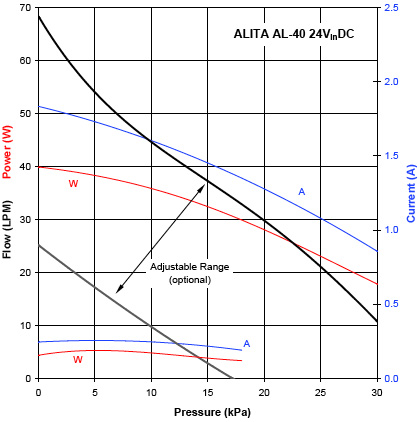

× 24V
× B24V
Specification
Model AL-40A.DC12 AL-40A.DC24
Operating Voltage 12VDC 24VDC
Rated Performance (±5%) 40 LPM @ 15 kPa
1.4 CFM @ 2.18 psig
40 LPM @ 10 kPa
1.4 CFM @ 2.18 psig
Rated Power 29 W 32 W
Rated Current 3.2 A 1.46 A
Maximum Power 34 W 40 W
Maximum Current 3.8 A 1.81 A
Input Voltage Range 9 ~ 15VDC 18 ~ 28VDC
Max. Instantaneous Voltage (50 ms) 25V 30V
Model AL-40A.DC12
Input Voltage 12VDC
Rated Performance (±5%) 40 LPM @ 15 kPa
1.4 CFM @ 2.18 psig
Rated Power 29 W
Rated Current 3.2 A
Maximum Power 34 W
Maximum Current 3.8 A
Input Voltage Range 9 ~ 15VDC
Max. Instantaneous Voltage (50 ms) 25V

Model AL-40A.DC24
Input Voltage 24VDC
Rated Performance (±5%) 40 LPM @ 15 kPa
1.4 CFM @ 2.18 psig
Rated Power 32 W
Rated Current 1.46 A
Maximum Power 40 W
Maximum Current 1.81 A
Input Voltage Range 18 ~ 28VDC
Max. Instantaneous Voltage (50 ms) 30V

36VDC & 48VDC models available, please contact Alita Industries
Specifications and performance data are subject to change without notice



Model Description:
AL-  40    A   .  DC12  .  MF

Rated Performance
    40: 40 LPM @ 15 kPa

Model Type
    A: Pressure only
    SA: Vacuum + Pressure
    B: Pressure only, component type
    SB: Vacuum + Pressure, component type

Input Voltage
    DC12: 12Vdc
    DC24: 24Vdc
    DC36: 36Vdc
    DC48: 48Vdc

Flow Adjustment
    MF: Manual ON/OFF and flow control
    AF5: Connect to external power switch and flow control with 0~5Vdc
    (none): No flow control
