ALITA
INDUSTRIES

AL-80A.DC Series


Performance Curves

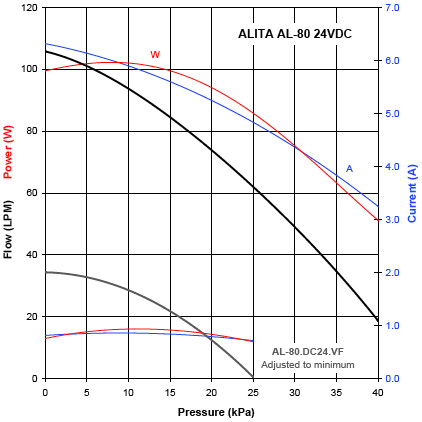

× 24V

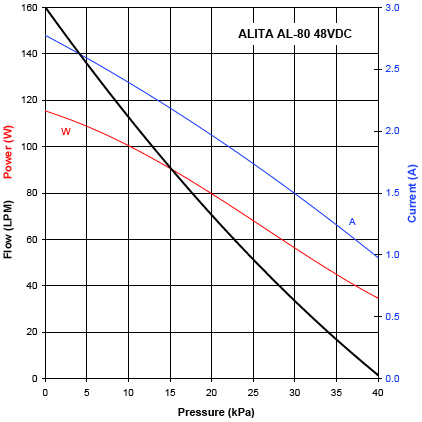

× 48V



Model Description:
AL-  80    A   .  DC24  .  MF

Rated Performance
    80: 80 LPM @ 15 kPa

Model Type
    A: Pressure only
    SA: Vacuum + Pressure
    B: Pressure only, component type
    SB: Vacuum + Pressure, component type

Input Voltage
    DC24: 24Vdc
    DC36: 36Vdc
    DC48: 48Vdc

Flow Adjustment
    MF: Manual ON/OFF and flow control
    AF5: Connect to external power switch and flow control with 0~5Vdc
    (none): No flow control
