ALITA
INDUSTRIES

Model AL-40, AL-60, AL-80


AL-40P
AL-60P
AL-80P
Nominal Performance Curves
× 120VAC
× 230VAC
Specification
Model AL-40 AL-60 AL-80
Voltage & Frequency AC 100V, 120V, 230V, 240V & 50/60 Hz
Normal Operating Pressure Range 5 ~ 20 kPa, 0.7 ~ 3 psig 5 ~ 25 kPa, 0.7 ~ 3.6 psig
Rated Pressure 15 kPa, 2.18 psig
Rated Performance (±5%) 40 LPM, 1.4 CFM 60 LPM, 2.1 CFM 80 LPM, 2.8 CFM
Rated Power 46 W 60 W 85 W
Sound Level 36 dB 38 dB 39 dB
Discharge O.D. 18 mm, 5/8 in
Weight 5.4 kg, 12 lb 6.3 kg, 14 lb 6.3 kg, 14 lb
Model AL-40
Voltage and Frequency 120V 60Hz 230V 50Hz
Rated Performance (±5%) 40 LPM @ 15 kPa
1.4 CFM @ 2.18 psig
Rated Power 46 W
Sound Level 36 dB
Discharge O.D. 18 mm, 5/8 in
Weight 5.4 kg, 12 lb

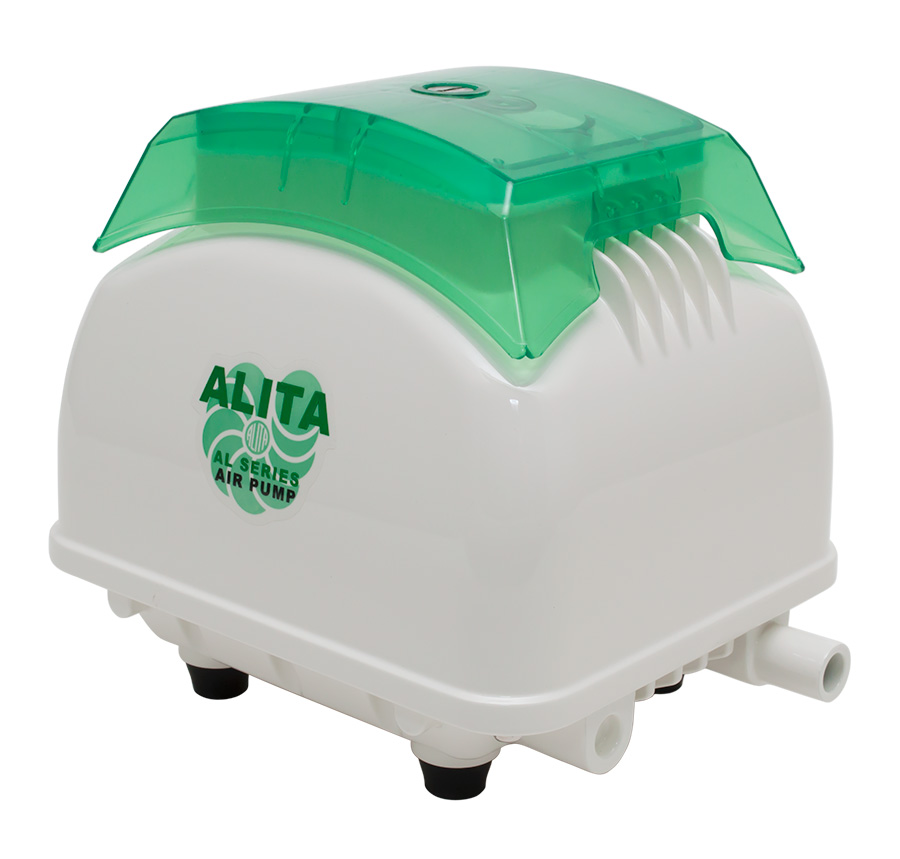

Model AL-60
Voltage and Frequency 120V 60Hz 230V 50Hz
Rated Performance (±5%) 60 LPM at 15 kPa
2.1 CFM at 2.18 psig
Rated Power 60 W
Sound Level 38 dB
Discharge O.D. 18 mm, 5/8 in
Weight 6.3 kg, 14 lb

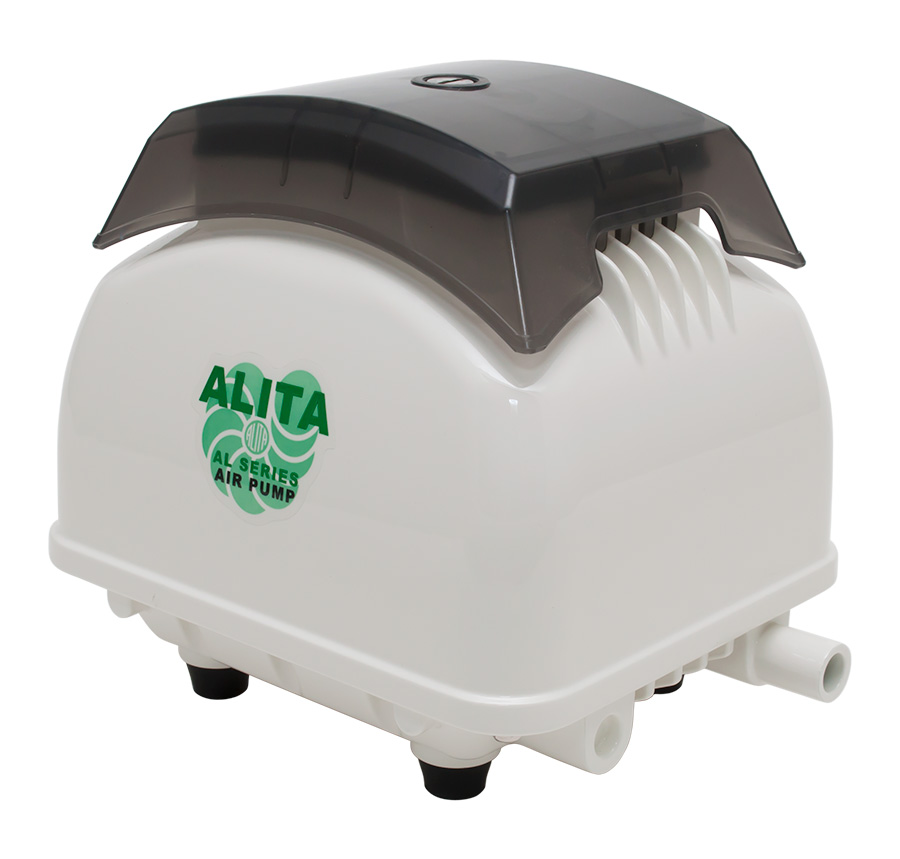

Model AL-80
Voltage and Frequency 120V 60Hz 230V 50Hz
Rated Performance (±5%) 80 LPM at 15 kPa
2.8 CFM at 2.18 psig
Rated Power 85 W
Sound Level 39 dB
Discharge O.D. 18 mm, 5/8 in
Weight 6.3 kg, 14 lb
Specifications and performance data are subject to change without notice
