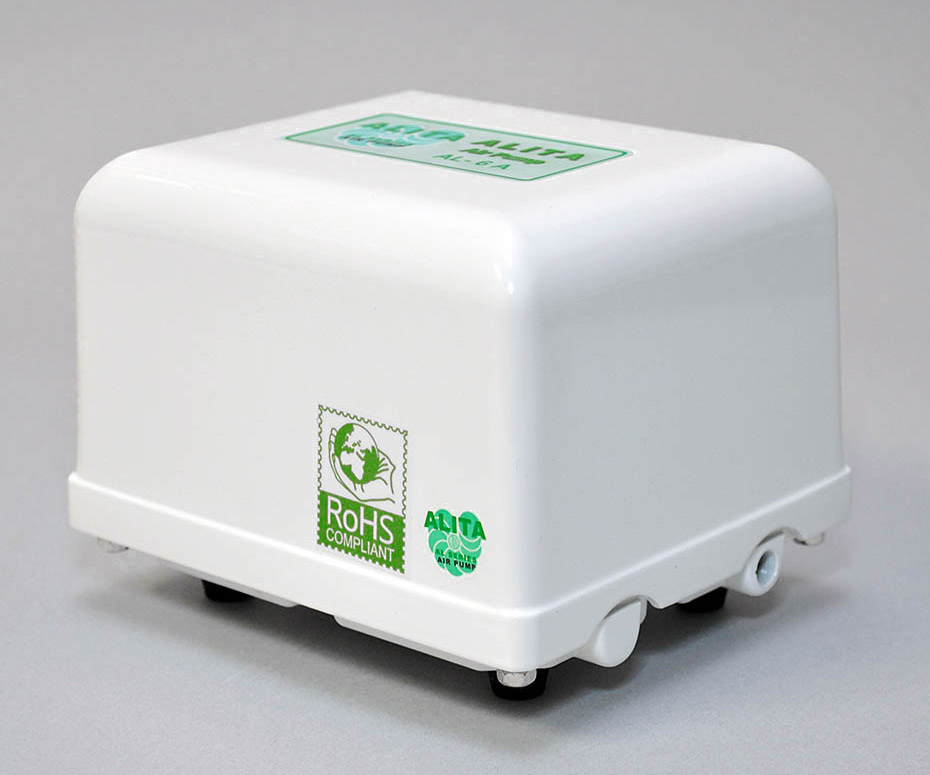

Model AL-6A, AL-15A

Solid construction, low noise and long lasting.
Aluminum alloys housing.
Oil-less operation.

Nominal Performance (120V 60Hz)
Performance Curve

Performance Curve

Specification

Model	AL-6A		AL-15A
Voltage and Frequency	120V 60Hz	230V 50Hz	120V 60Hz	230V 50Hz
Rated Performance (±5%)	10 LPM @ 10 kPa 0.35 CFM @ 1.4 psig		15 LPM at 10 kPa 0.53 CFM at 1.4 psig
Rated Power	13 W		19 W
Sound Level	27 dB		29 dB
Discharge O.D.	1/8" FPT tapered *
Weight	2.6 kg, 5.8 lb

Model	AL-6A
Voltage and Frequency	120V 60Hz	230V 50Hz
Rated Performance (±5%)	10 LPM @ 10 kPa 0.35 CFM @ 1.4 psig
Rated Power	13 W
Sound Level	27 dB
Discharge O.D.	1/8" FPT tapered *
Weight	2.6 kg, 5.8 lb

Model	AL-15A
Voltage and Frequency	120V 60Hz	230V 50Hz
Rated Performance (±5%)	15 LPM at 10 kPa 0.53 CFM at 1.4 psig
Rated Power	19 W
Sound Level	29 dB
Discharge O.D.	1/8" FPT tapered *
Weight	2.6 kg, 5.8 lb

* Supplied discharge fittings: 3/16" & 3/8" barb, 3/8" barb with 5mm ID
Specifications and performance data are subject to change without notice

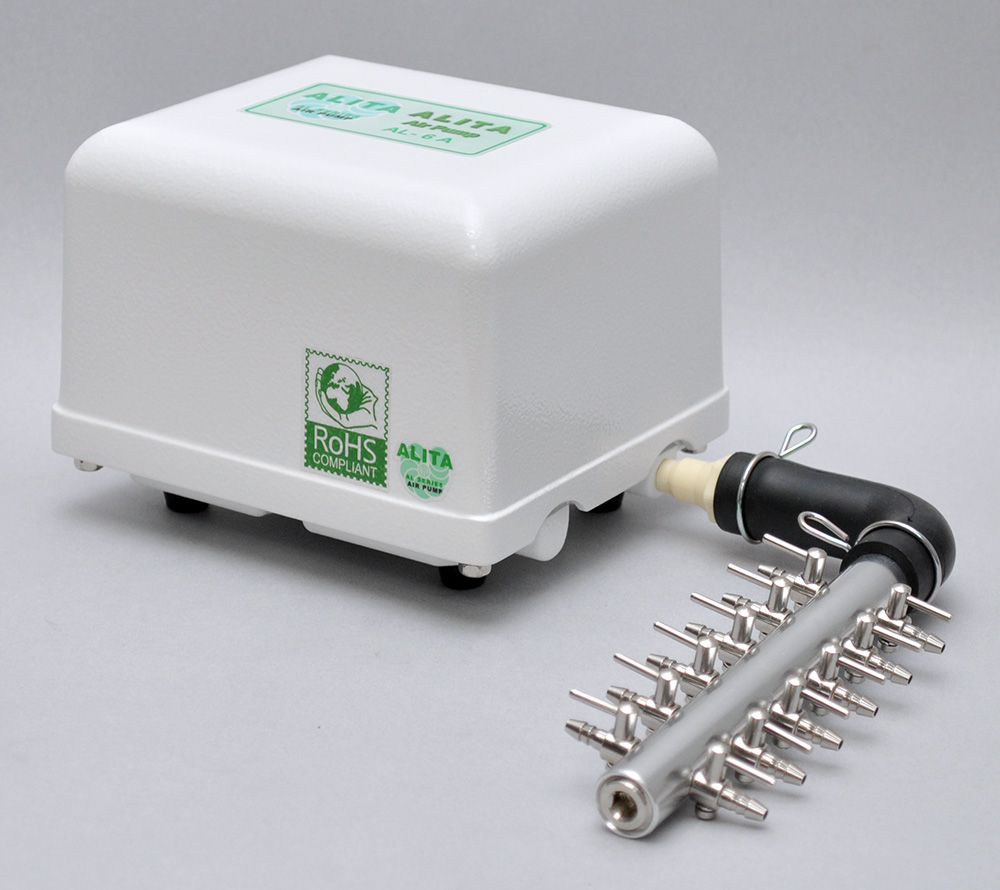

Optional 8 and 12 port air manifold kits

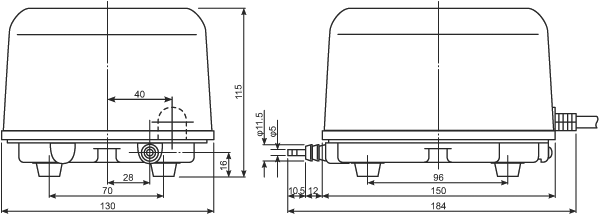

Dimension

Unit (mm)
