ALITA
INDUSTRIES

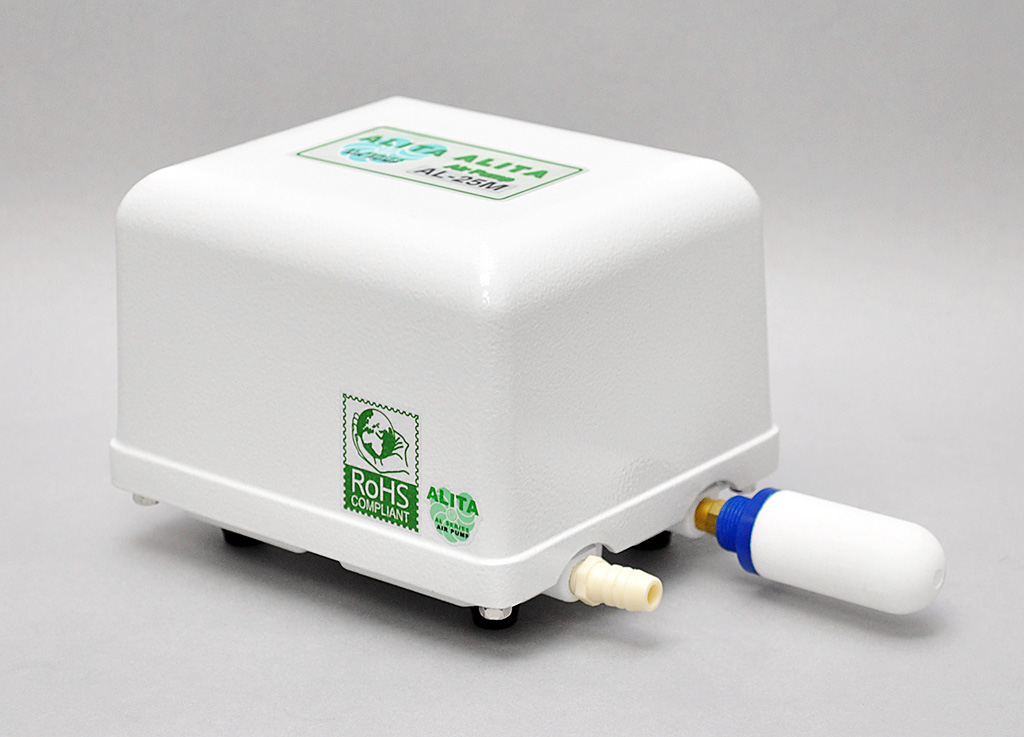

Model AL-25M, AL-35M

Solid construction, low noise and long lasting.
Aluminum alloys housing.
Oil-less operation.

Nominal Performance (120V 60Hz)
Performance Curve

Performance Curve

Specification

Model	AL-25M		AL-35M
Voltage and Frequency	120V 60Hz	230V 50Hz	120V 60Hz	230V 50Hz
Rated Performance (±5%)	25 LPM @ 10 kPa 0.88 CFM @ 1.4 psig		35 LPM at 10 kPa 1.24 CFM at 1.4 psig
Rated Power	23 W		35 W
Discharge O.D.	1/8" FPT tapered *
Weight	3.5 kg, 7.7 lb

Model	AL-25M
Voltage and Frequency	120V 60Hz	230V 50Hz
Rated Performance (±5%)	25 LPM @ 10 kPa 0.88 CFM @ 1.4 psig
Rated Power	23 W
Discharge O.D.	1/8" FPT tapered *
Weight	3.5 kg, 7.7 lb

Model	AL-35M
Voltage and Frequency	120V 60Hz	230V 50Hz
Rated Performance (±5%)	35 LPM at 10 kPa 1.24 CFM at 1.4 psig
Rated Power	35 W
Discharge O.D.	1/8" FPT tapered *
Weight	3.5 kg, 7.7 lb

* Supplied discharge fittings: 3/8" barb, 5/8" barb with 1/4" FNPT
Specifications and performance data are subject to change without notice

Dimension

Unit (mm)
